MOBIO booth No. : North facility 2nd floor 138

SANTEST CO., LTD.

Product line

Magnetostrictive float-type level gauge

Wire-type linear encoder

Shock Data Logger

President

Kozo Kyoizumi

Description of business

Santest Co., Ltd. develops, manufactures and sells mechatronics products, such as sensors and control devices, that are used mainly for the automation and visualization of production equipment in monozukuri, or manufacturing. Santest’s products are used in various industries, such as automotive, tires and rubber, semiconductors, iron and steel, paper and film, chemicals, and food.

Products and Technologies

Magnetostrictive float-type level gauge

Manage tank levels with continuous sensor output! This float-type level gauge with a built-in magnet moves along the probe to detect continuous changes in liquid levels with high accuracy to achieve the highest level of precision.

Liquid level gauge

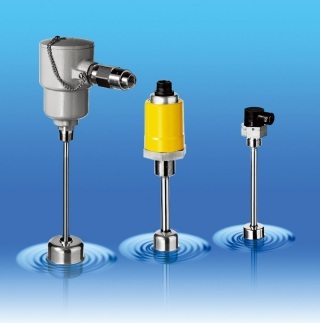

●Float-type level gauge

One float moving up and down the probe rod continuously outputs 4-20mA.

Since the position of the float is detected physically, there is no possibility of a false detection depending on the type and condition of the liquid.

The level gauge can be manufactured in any length up to 7500mm.

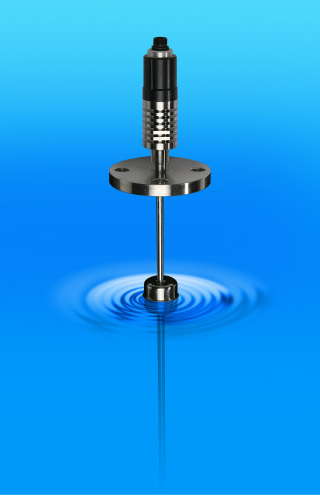

High temperature level gauge

●Extensive lineup of high-temperature, compact, and explosion proof-type gauges (explosion proof, intrinsically safe)

The wet contact part (rod) of a high temperature-type level gauge can be used in environments up to 200℃ (sensor part up to 65℃).

Although a standard sensor probe rod is made of SUS304 or SUS316, it is optionally compatible with SUS 316L, titanium, Teflon, polyvinyl chloride and others.

Flanges and ferrules can also be attached.

Wire-type linear encoder

Dimensions can be measured like a tape measure!

● Compact wire-type encoder

Wire length can be selected from 2m to 6m.

Can be easily installed.

A standard type encoder offers A/B phase pulse output, but absolute-type encoders can also be selected as options for voltage output, current output, and SSI output.

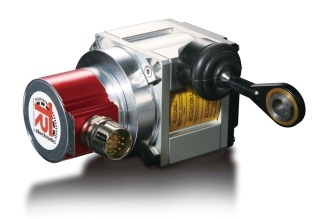

● Robust wire-type encoder

A wire box can be selected from 2m up to a maximum of 60m. The service life is 1 million turns.

Combined encoders are incremental or absolute type.

A/B phase pulse, voltage output, current output, SSI output, PROFIBUS, EtherNet/IP, or EtherCAT can be selected.

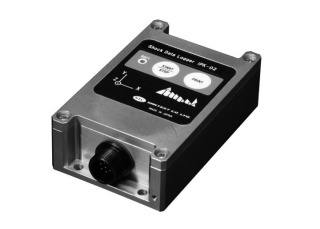

Shock Data Logger

Always monitor shocks during transportation!

Constant monitoring of shocks generated during transportation with an acceleration sensor that uses a capacitive element.

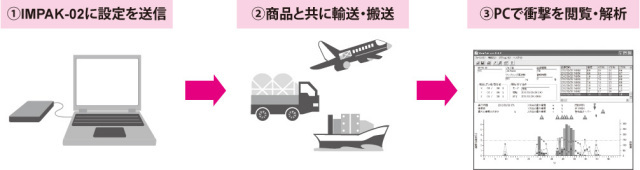

1)Transmit settings to IMPAK-02

2)Transported together with goods

3)Review and analyze shock by PC after transportation

Easily set using a PC.
Simply attach the data logger to the main unit to record the X/Y/Z three-axis shock value and date and time of occurrence.
After the data has been recorded, simply connect the logger to a PC with a USB cable.

Corporate Profile

Corporate name
SANTEST CO., LTD.
Address
2-51, Shimaya 4-Chome, Konohana-ku,Osaka-city, 554-8691, Japan
President
Kozo Kyoizumi
Founded / Established
1953 / 1954
Phone
+81-6-6465-5561
Fax
+81-6-6465-5921
Company URL

https://www.santest.co.jp/en/index.php

Capital
30,200,000 yen
