Exhibition booths: 126

Daishowa Seiki Co., Ltd. Daishowa Seiki

President and Representative Director
Joji Nakatani

Main products

Development, manufacturing, and sales of tool holders and cutting tools.
Development, manufacturing, and sales of precision measuring instruments.
Development and sales of integrated manufacturing information management software.

Business content

Daishowa Seiki Co., Ltd. develops, manufactures, and sells machine tool holders (tooling), FA software, and precision measuring instruments. We continue to meet our customers' expectations of reliability with "high precision" and "high quality" products, supporting manufacturing worldwide.

Daishowa Seiki Co., Ltd. Daishowa Seiki

President and Representative Director
Joji Nakatani

会社の写真

Product and Technology Introduction

Mega Chuck Series

Pursuing the world's highest levels of precision and efficiency.

会社の写真

Tooling refers to a general term for tool holders that are attached to the spindle of a machine tool to hold cutting tools such as drills and end mills. The precision of the tooling significantly affects the precision of metalworking.

The Mega Chuck series was born in 1994 in response to the increasing speed and precision of machine tools. By thoroughly pursuing holder shape, screw precision, and tool balance, it suppresses vibration even at high rotational speeds, reduces wind noise and cutting fluid scattering, and achieves both high rotation and high precision.

In addition to these, we offer a wide range of products to meet the diverse needs of our users, including boring machines, tapping machines, cutting tools, and measuring instruments.

Smart Damper

Special dampers eliminate rattling noises.

会社の写真

Smart Damper is a boring bar with a built-in vibration damping mechanism. When boring deep holes or machining large workpieces, long tools are required. When tools are long and prone to bending, chatter vibrations are more likely to occur. If cutting conditions are reduced to avoid chatter vibrations, productivity decreases, and furthermore, surface quality and tool life become concerns.

By incorporating a special damper (weight) into the main body, vibrations caused by chatter during machining are instantly dampened, enabling high-speed and high-efficiency machining even when the tool overhang is long.

Our product lineup includes not only small-diameter deep-hole boring and large-diameter boring of φ200 or more, but also smart dampers for milling cutters.

Dyna ZERO SYSTEM

Towards an era of zero runout during spindle rotation.

会社の写真

The Dyna ZERO SYSTEM, a combination of Dyna ZERO Vision and Dyna ZERO Chuck, was created to meet the demand for near-zero runout accuracy.

The non-contact tool measuring instrument, Dyna ZERO Vision, controls the timing of camera imaging, enabling measurement at 1° intervals of cutting tool (spindle) rotation at actual machining speeds. Based on the measurement results from Dyna ZERO Vision, runout is corrected by tightening the runout adjustment screw on the Dyna ZERO Chuck body. The amount and direction of runout at the cutting edge can be adjusted in 0.1 μm increments, achieving a cutting edge runout of 1 μm or less during machining.

Previously, this process relied on the experience and intuition of skilled technicians, but now it can be done quantitatively. This is expected to have various benefits in the manufacturing field, such as stabilizing processing quality, improving precision, and extending tool life, and is therefore being adopted.

Supporting global manufacturing

Top market share in Japan for touring vehicles.

会社の写真

Daishowa Seiki, characterized by its BIG logo and cobalt blue corporate color, has maintained its philosophy since its founding in 1967: "To provide high-quality products that truly satisfy our customers." With this unwavering commitment, BIG products are delivered to over 40 countries worldwide. From manufacturing tooling, in which it holds the top market share in Japan, to developing and selling FA factory management software and cutting tools, its total product range exceeds 40,000 types. In particular, its tooling, which holds tools attached to machine tools and requires precision of less than 1/1000th of a millimeter, has earned high trust around the world.

Developed in 1969, this drill tapper, the first in Japan to feature automatic torque adjustment, was well-received by users and remains a popular, long-selling product.

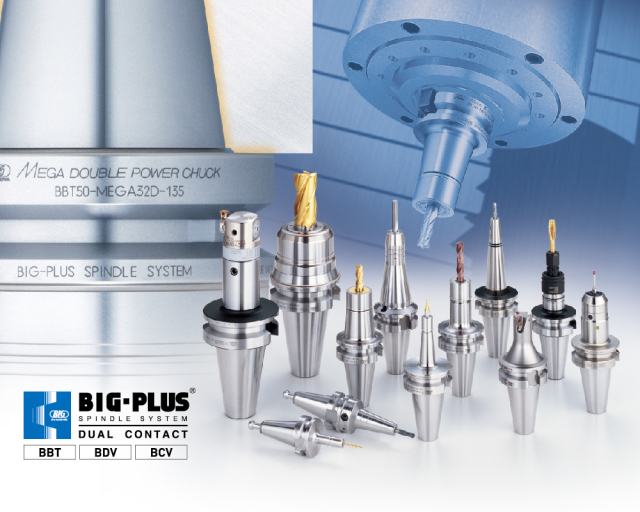

In 1992, we developed the "Big Plus Spindle System," which is now an industry standard. It is a two-face restraint system for the interface (the part connecting the tooling and the machine tool spindle), eliminating the gap between the machine and the tooling, enabling high rigidity and high-precision machining. At a time when restraint on only one surface of the tapered surface (BT standard) was the norm, this specification, which firmly restrained the tooling end face as well, was groundbreaking. This invention succeeded in raising the rigidity and precision of machine tools by one level (winner of the 23rd Invention Award).

Centralized management with Factory Manager

The industry currently suffers from a chronic shortage of skilled technicians. Moreover, training such personnel takes 5 to 10 years. Factory Manager was developed with the idea of creating a system that would maximize the machine's capabilities regardless of who is operating it.
This is a system that centrally manages production information data such as tool compensation values, tool location, tool life, machine operation monitoring, and NC data. While it does not directly contribute to machining accuracy or efficiency, it is effective in improving the operating rate of machine tools used for machining and managing tool life.

By scanning the 2D code engraved on the holder, manufacturing-related information such as tool length, tool life, and storage shelf is displayed, eliminating the need for traditional note-taking and manual data entry, thus reducing human error and saving labor. Furthermore, by communicating between Factory Manager and machine tools, tool presetters, and tool storage shelves, information on all owned tools and machinery can be viewed at a glance from the office, allowing for on-site status checks.

The company has also implemented this system at its Awaji factory, and its ability to incorporate and reflect feedback from the field is a strength. They confront problems head-on, listen to even the smallest voices, and continue development daily in pursuit of uncompromising quality.

会社の写真

Company profile

Company name

Daishowa Seiki Co., Ltd.

address

3-3-39 Nishiishikiri-cho, Higashiosaka City, Osaka Prefecture

representative

Joji Nakatani

Founding year/Establishment year

1967

telephone number

072-982-2312

FAX number

072-980-2231

Company website

http://www.big-daishowa.co.jp

● Awards
23rd Invention Grand Prize, Pond Invention Achievement Award (1998)
300 thriving small and medium-sized manufacturing companies (FY2007)
58th Nikkan Kogyo Shimbun 10 New Product Awards Main Award (2015)
64th Nikkan Kogyo Shimbun Top 10 New Product Awards Main Award (2021)
48th Invention Grand Prize, Nikkan Kogyo Shimbun Award (2023)

● Patent obtained
ISO9001 certified
